Multi-wire cutting machine FFDXDG-3550

Features

Product description

Product specifications

Technical characteristics

product description

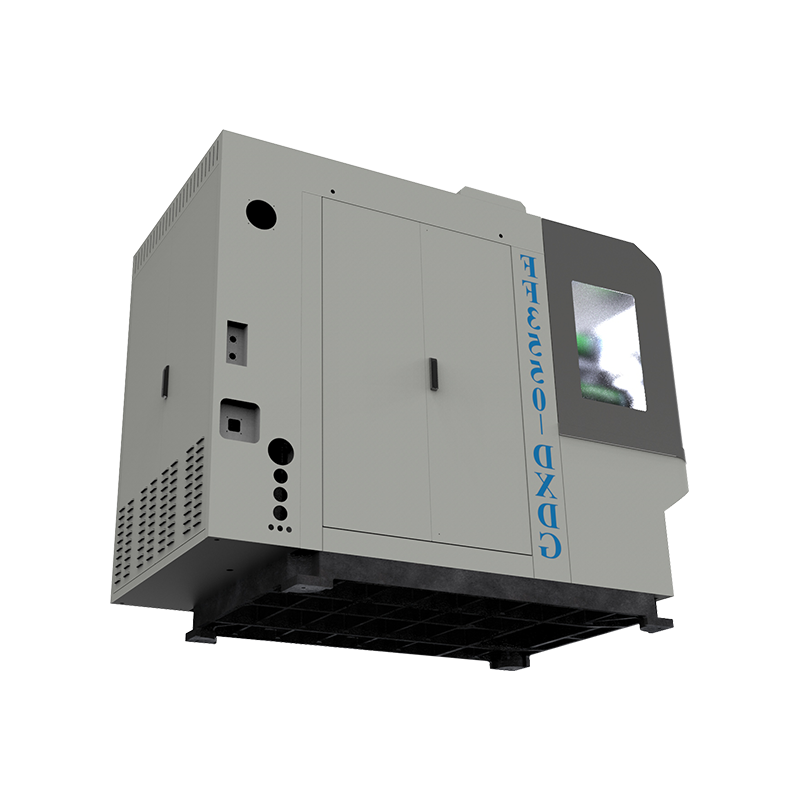

This product is an equipment that uses diamond wire to cut magnetic materials. Through a diamond wire wound on the cutting main roller for high-speed reciprocating operation and a high-precision control system, the magnetic material can be processed and finally cut into pieces. a processing technology.

The equipment is mainly used to process the block magnetic material into straight or arc-shaped pieces according to the needs. It is a new type of equipment with reliable function, high cutting efficiency and high processing precision.

Cut sample

Basic technical parameters

serial number	project	unit	content
1	Workbench maximum workpiece size	mm	W160L600H160
2	Diamond wire diameter	mm	0.10-0.20
3	incoming line direction		One-way/two-way incoming line
4	Maximum line speed	m/min	2100
5	cutting method		cut down
6	Roller balance	g	≤3
7	cutting flatness	mm	±0.01
8	Cutting thickness	mm	0.2
9	cutting speed	mm/min	0.2-4
10	fast forward, rewind	mm/min	10
11	The maximum storage capacity of the take-up reel	m	50000
12	Number of guide wheels	piece	6
13	Device size (length × width × height)	mm	About W1400L3000H2400
14	curb weight	Kg	About 7500

Performance characteristics

●The maximum workpiece size of the worktable is W160*L600*H160*2
●Diameter of diamond wire 0.15-0.45
●The maximum line speed reaches 1200m/min
●Cutting method Upper cutting The upper knife holder rotates 0-10 degrees on one side
●Cutting thickness 0.2mm
The curb weight is about 5200kg, low energy consumption, the spindle power is 5.5Kw, the total power is about 33KW, the spindle power is 7.5Kw, and the total power is about 40KW
●The guide wheel is reduced to 6
●The curb weight is about 5200kg
●Break-and-break function
●The cutting line has a swing function
